In order to measure torque and force, a large range of sensors is available. All these sensors are bidirectional, inductive or resistive type with a good linearity and negligible hysteresis. These sensors allow to measure torque less than 1 uNm and up to 1 Nm.

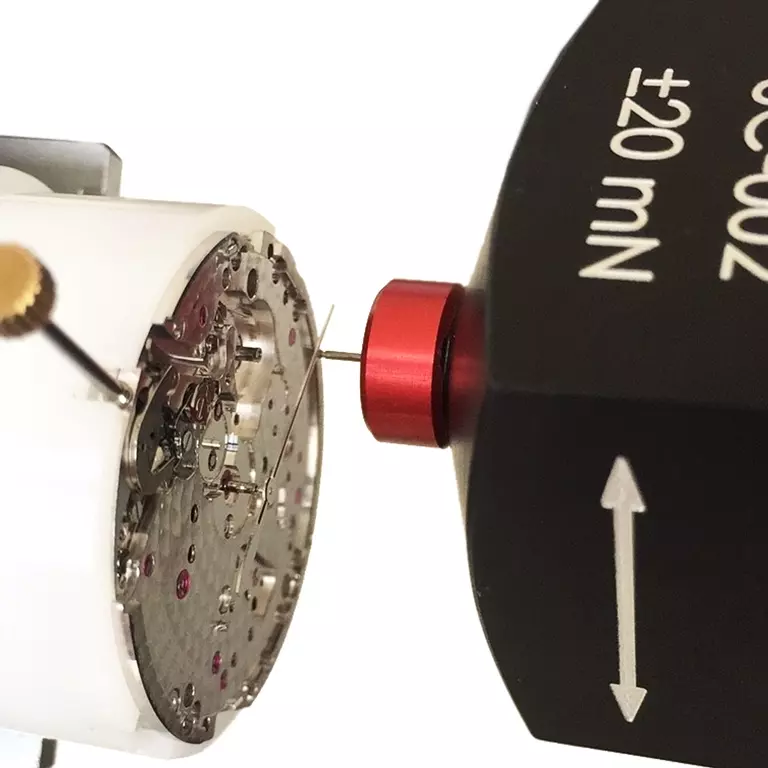

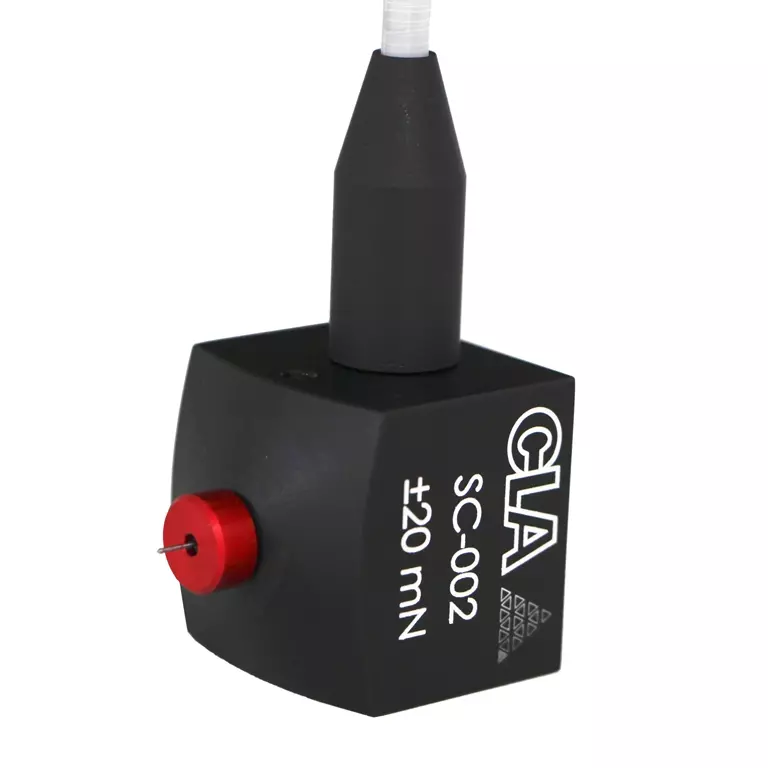

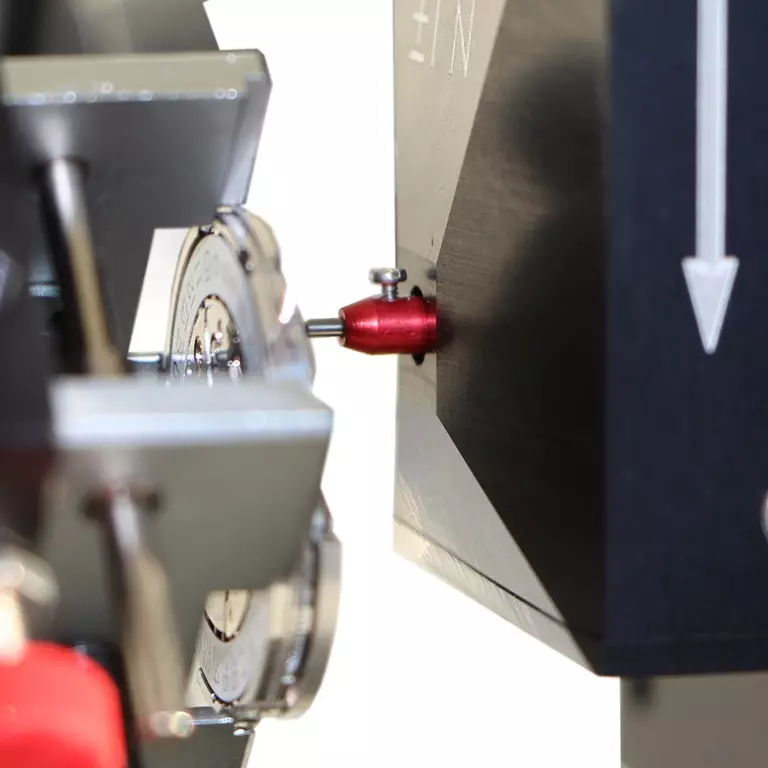

The CLA SC-002 is bidirectional, resistive type force sensor. The measurement system is composed of a semiconductor strain gage. The measurement shaft is made of a 0.5mm diameter axis with a positioning notch for calibration and measurement. The design of that sensor is specially made for a high resonance frequency.
FORCE sensor |
|
| SC-002 | ±20 mN |

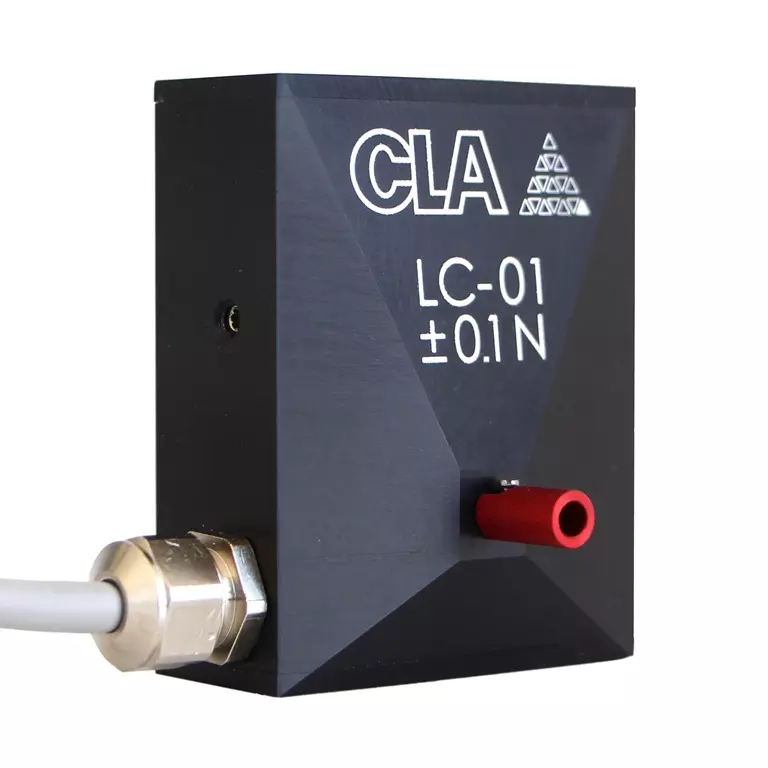

| LC-01 | ±0.1 N |
| LC-1 | ±1 N |
| LC-5 | ±5 N |
| LC-10 | ±10 N |

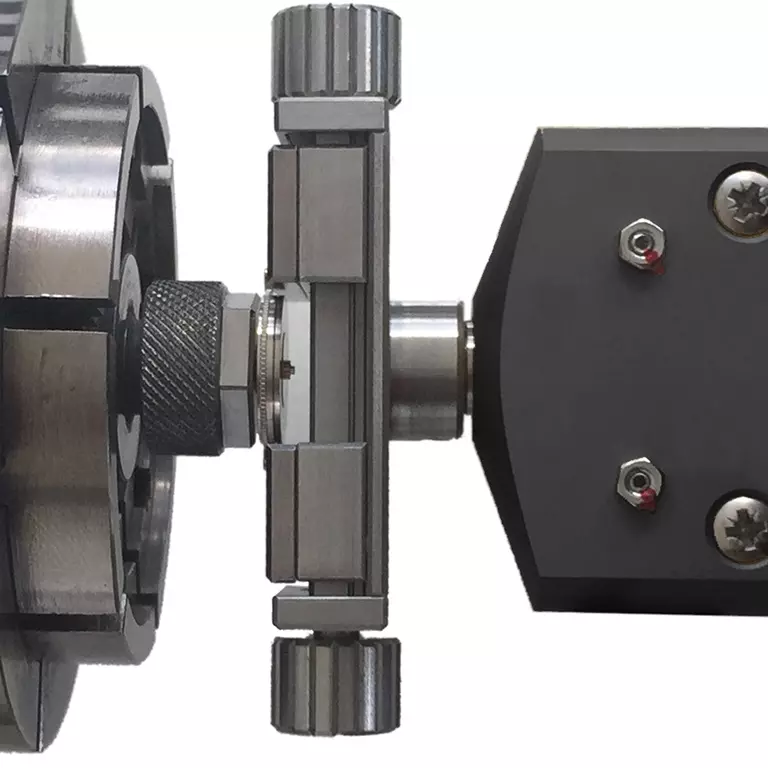

Torque sensors |
|

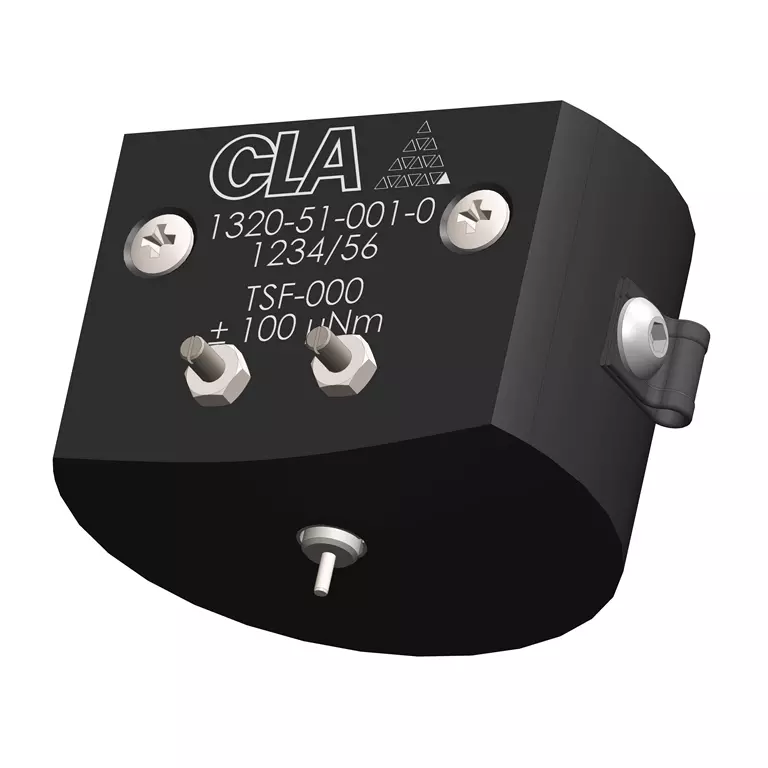

| TSF-000 | ±100 μN.m |
| TSF-005 | ±500 μN.m |
| TSF-01 | ±1 mN.m |
| TSF-05 | ±5 mN.m |
| TSF-1 | ±10 mN.m |
| TSF-2 | ±20 mN.m |
| TSF-5 | ±50 mN.m |
| TSF-10 | ±100 mN.m |
| TSF-30 | ±300 mN.m |
| TSF-100 | ±1 N.m |
The Digimes Universel is a 5 KHz carrier current bridge for resistive, inductive or differential transformer transducers connected in full or half bridge. The sensitivity is adjustable by the user between 2 mV/V and 100 mV/V according to six measuring ranges. Gain and offset can be adjusted with potentiometers to allow calibration of the sensor.
There is also the Digimes Compact, dedicated to one sensor.
Technical documentation - CLA sensors.pdf
CAD-SC-002
